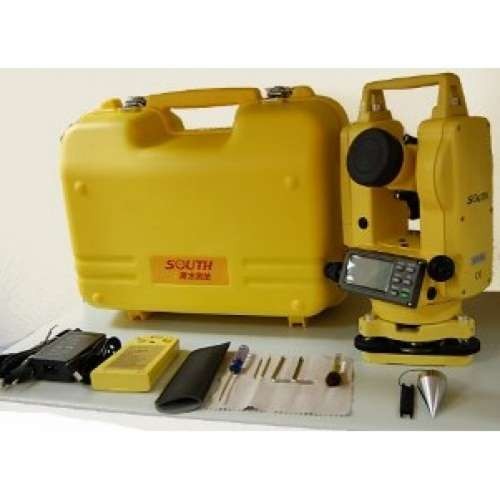

Digital Theodolite South ET 05 5 Angular Accuracy Reading system Absolute Encoding Auto vertical compensator Liquid electric detection Specific large 2 side LCD screen for clear reading in all conditions Detection method Horizontal angle dual Vertical angle dual The South ET series Theodolites have Smart appearance reasonable structure practical functions. They are easy to use and with excellent performance and reliable quality. Includes theodolite tribrach NiH rechargeable battery Charger user manual and one year manufacturer warranty SPECIFICATION Model ET 05 Telescope Magnification 30X Objective Lens 45mm Overall Length 157mm Stadia Ration 100 Stadia Constant 0 Image Erect Field of View 1 30 Minimum Focus 1.4m Resolving Power 3.0 Electronic Angle Measurement Reading System Photoelectric detection by incremental encoder Diameter of Circle VHz 79mm Minimum Reading 1 5 Selectable Accuracy 5 Horizontal Angle Dual Vertical Angle Single Display LCD Display Type 2 sides segment LCD in two lines Level Sensitivity Plate Level 30 2mm 30 per 2mm Circular Level 8 2mm 8 per 2mm Auto Vertical Compensator System Liquid electric detection plate level selectable Working range 3 Accuracy 1 Liquid electric detection 30 2mm plate level Optical Plummet Telescope Image Erect Magnification 3X Focusing Range 0.5m infinity
