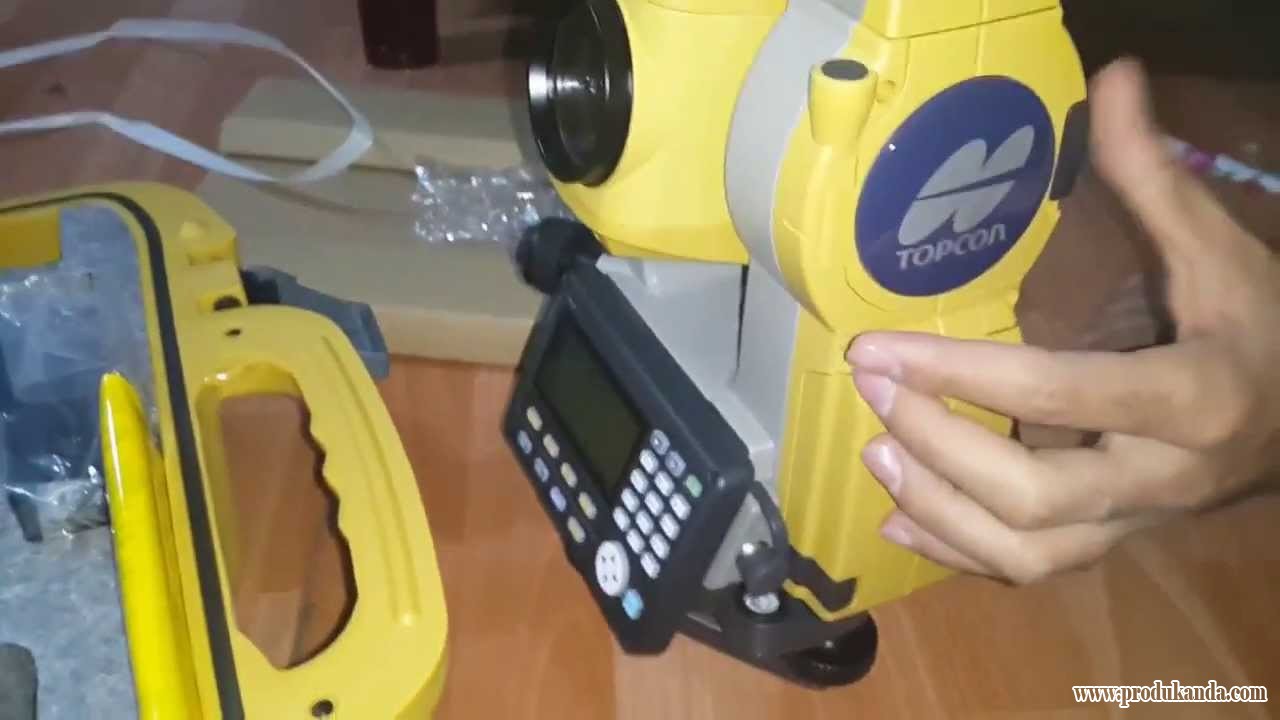

Topcon OS-102 With the latest total station technology in an IP65 rated housing, the OS can handle whatever you need to accomplish. Built for on-the-go tasks with a far reaching, precise firing EDM, extended use batteries, and data collection software right on the instrument. Take charge of sites with world-class accuracy from the OS series by Topcon.



• Modern, intuitive MAGNET® Field on-board data collection software

• Powerful EDM for rapid, repeatable measurements

• TSshield™ web services for streamlined maintenance and security

• Convenient EDM trigger key with minimal disturbance Features Topcon OS 102 2-Second Reflectorless Total Station

• Accurate, long distance measurement

• Measures up to 1, 640 feet in reflectorless mode

• Measures up to 16, 400 feet with a prism

• Memory storage of 750 MB

• USB storage

• Easy file transfers

• MAGNET Field software included

• LCD full color touchscreen

• Rechargeable battery

• Battery life of 20 hours Specifications Topcon OS 102 2-Second Reflectorless Total Station General

• Weight: 12.3 lbs ( 5.6 kg)

• Dimensions: 7.5 in x 7.5 in x 13.7 in ( 19.1 cm x 19 cm x 34.8 cm)

• Warranty: 1-year

• Protection Class: IP65 ( dust proof and water jets resistant)

• Tripod Thread: 5/ 8 - 11

• Internal Memory: 750 MB

• Software: MAGNET Field

• Guide Light: Green and red LED; Operating time: 1.3 to 150 m ( 4.3 to 490 ft) Angle Measurement

• Measuring Method/ Reading System: Independent Angle Calibration System ( IACS)

• Minimum Reading: 0.5-second/ 1-second

• Accuracy: 2-second Distance Measurement

• Unit of Measure ( distance display) : m/ ft

• EDM Accuracy ( Precision) : ± ( 2mm + 2ppm x D) for prism; ± ( 3mm + 2ppm x D) for no prism

• Minimum Reading: 500 m ( 1, 640 ft) Tilt Sensor/ Compensator

• Range: ± 6

• Type: Liquid

• Method: Electronic Automatic Battery/ Power

• Power Source: Rechargeable Li-ion battery

• Battery Life: 20 hours

• Battery Life Alert: yes Telescope

• Length of Tube: 6.7 in ( 17.1 cm)

• Image: Erect

• Diameter of Objective Lens ( Aperture) : 1.9 in ( 48mm) EDM

• Magnification: 30x

• Field of View: 1 degree 30 arcmin

• Resolving Power: 2.5 arcsec

• Minimum Focus Distance: 1.3 m ( 4.3 ft)

• Reticle Illumination: 5 brightness levels

• Reflectorless: yes Display and Keypad

• Type: Semi-transmissive TFT QVGA color LCD

• Sides: Dual

• Keys: Alphanumeric

• Touchscreen: yes

• Backlight: yes Temperature

• Operating: -4Fº ~ 140º F ( -20º C~ 60º C) Applications

• Surveying and Construction: yes

• Mapping and GIS ( geographic information systems) : yes

• Utilities: yes

• Environment Studies: yes

• Geomarking: yes

• Archaeology: yes

• Accident Reconstruction: yes Measurement Range ( under fair weather conditions)

• Single Prism: 5, 000m ( 16, 400 ft)

• Triple Prism: 6, 000m ( 19, 680 ft)

• No Prism: 500 m ( 1, 640 ft)

• Mini Prism: 500 m ( 1, 640 ft)

• Reflector Sheet: 500 m ( 1, 640 ft) Functions

• Coordinate Measurement Point: yes

• Angle and Distance Stake Out: yes

• Stake Out Line: yes

• Offsets: yes

• Missing Line: yes

• Remote Elevation: yes

• Resection: yes

• Area Calculation: yes Measurement Time

• Fine: 0.9-second

• Rapid: 0.7-second

• Tracking: 0.3-second Laser Plummet

• Accuracy: ± 1.0 mm/ 1.3 m

• Class: 2

• Wavelength: 635 nm Interface

• Bluetooth: Class 1 LongLink technology

• USB: Type A and mini B

• Pin Port: RS-232C

• Operating System: Windows CE 6.0
